Rule Language Reference (Traditional)

Traditional DRL Syntax

This chapter explains the traditional DRL syntax. This syntax can be used instead of the RuleUnit and OOPath based syntax. The traditional syntax is still fully supported.

Packages in DRL

A package is a folder of related assets in Drools, such as data objects, DRL files, decision tables, and other asset types. A package also serves as a unique namespace for each group of rules. A single rule base can contain multiple packages. You typically store all the rules for a package in the same file as the package declaration so that the package is self-contained. However, you can import objects from other packages that you want to use in the rules.

The following example is a package name and namespace for a DRL file in a mortgage application decision service:

Example package definition in a DRL file

package org.mortgages;

The following railroad diagram shows all the components that may make up a package:

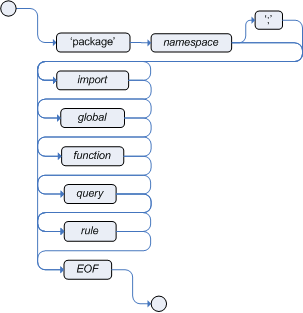

Figure 1. Package

Note that a package must have a namespace and be declared using standard Java conventions for package names; i.e., no spaces, unlike rule names which allow spaces. In terms of the order of elements, they can appear in any order in the rule file, with the exception of the package statement, which must be at the top of the file. In all cases, the semicolons are optional.

Notice that any rule attribute (as described the section Rule Attributes) may also be written at package level, superseding the attribute’s default value. The modified default may still be replaced by an attribute setting within a rule.

Import statements in DRL

Figure 2. Import

Similar to import statements in Java, imports in DRL files identify the fully qualified paths and type names for any objects that you want to use in the rules. You specify the package and data object in the format packageName.objectName, with multiple imports on separate lines. The Drools rule engine automatically imports classes from the Java package with the same name as the DRL package and from the package java.lang.

The following example is an import statement for a loan application object in a mortgage application decision service:

Example import statement in a DRL file

import org.mortgages.LoanApplication;

Functions in DRL

Figure 3. Function

Functions in DRL files put semantic code in your rule source file instead of in Java classes. Functions are especially useful if an action (then) part of a rule is used repeatedly and only the parameters differ for each rule. Above the rules in the DRL file, you can declare the function or import a static method from a helper class as a function, and then use the function by name in an action (then) part of the rule.

The following examples illustrate a function that is either declared or an imported static method in a DRL file:

Example function declaration with a rule (option 1)

function String hello(String applicantName) {
    return "Hello " + applicantName + "!";
}

rule "Using a function"
  when
    // Empty
  then
    System.out.println( hello( "James" ) );
end

Example import a static method of a Java class (option 2)

package org.example.applicant;

public class MyFunctions {

    public static String hello(String applicantName) {
        return "Hello " + applicantName + "!";
    }
}

import static org.example.applicant.MyFunctions.hello;

rule "Using a function"
  when
    // Empty
  then
    System.out.println( hello( "James" ) );
end

A function declared in a DRL file cannot be imported to a rule in a different package while a Java static method in a different package can be imported.

Queries in DRL

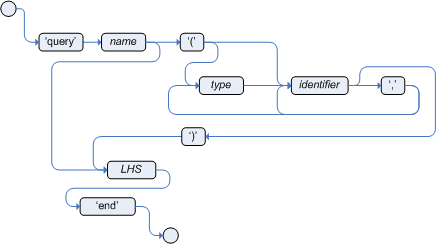

Figure 4. Query

Queries in DRL files search the working memory of the Drools rule engine for facts related to the rules in the DRL file. You add the query definitions in DRL files and then obtain the matching results in your application code. Queries search for a set of defined conditions and do not require when or then specifications. Query names are global to the KIE base and therefore must be unique among all other rule queries in the project. To return the results of a query, you construct a QueryResults definition using ksession.getQueryResults("name"), where "name" is the query name. This returns a list of query results, which enable you to retrieve the objects that matched the query. You define the query and query results parameters above the rules in the DRL file.

The following example is a query definition in a DRL file for underage applicants in a mortgage application decision service, with the accompanying application code:

Example query definition in a DRL file

query "people under the age of 21"
    $person : Person( age < 21 )
end

Example application code to obtain query results

QueryResults results = ksession.getQueryResults( "people under the age of 21" );
System.out.println( "we have " + results.size() + " people under the age  of 21" );

You can also iterate over the returned QueryResults using a standard for loop. Each element is a QueryResultsRow that you can use to access each of the columns in the tuple.

Example application code to obtain and iterate over query results

QueryResults results = ksession.getQueryResults( "people under the age of 21" );
System.out.println( "we have " + results.size() + " people under the age of 21" );

System.out.println( "These people are under the age of 21:" );

for ( QueryResultsRow row : results ) {
    Person person = ( Person ) row.get( "person" );
    System.out.println( person.getName() + "\n" );
}

Support for positional syntax has been added for more compact code. By default the declared type order in the type declaration matches the argument position. But it possible to override these using the @position annotation. This allows patterns to be used with positional arguments, instead of the more verbose named arguments.

declare Cheese
    name : String @position(1)
    shop : String @position(2)
    price : int @position(0)
end

The @Position annotation, in the org.drools.definition.type package, can be used to annotate original pojos on the classpath. Currently only fields on classes can be annotated. Inheritance of classes is supported, but not interfaces or methods. The isContainedIn query below demonstrates the use of positional arguments in a pattern; Location(x, y;) instead of Location( thing == x, location == y).

Queries can now call other queries, this combined with optional query arguments provides derivation query style backward chaining. Positional and named syntax is supported for arguments. It is also possible to mix both positional and named, but positional must come first, separated by a semi colon. Literal expressions can be passed as query arguments, but at this stage you cannot mix expressions with variables. Here is an example of a query that calls another query. Note that 'z' here will always be an 'out' variable. The '?' symbol means the query is pull only, once the results are returned you will not receive further results as the underlying data changes.

declare Location
    thing : String
    location : String
end

query isContainedIn( String x, String y )
    Location(x, y;)
    or
    ( Location(z, y;) and ?isContainedIn(x, z;) )
end

As previously mentioned you can use live "open" queries to reactively receive changes over time from the query results, as the underlying data it queries against changes. Notice the "look" rule calls the query without using '?'.

query isContainedIn( String x, String y )
    Location(x, y;)
    or
    ( Location(z, y;) and isContainedIn(x, z;) )
end

rule look when
    Person( $l : likes )
    isContainedIn( $l, 'office'; )
then
   insertLogical( $l 'is in the office' );
end

Drools supports unification for derivation queries, in short this means that arguments are optional. It is possible to call queries from Java leaving arguments unspecified using the static field org.drools.core.runtime.rule.Variable.v - note you must use 'v' and not an alternative instance of Variable. These are referred to as 'out' arguments. Note that the query itself does not declare at compile time whether an argument is in or an out, this can be defined purely at runtime on each use. The following example will return all objects contained in the office.

results = ksession.getQueryResults( "isContainedIn", new Object[] {  Variable.v, "office" } );
l = new ArrayList<List<String>>();
for ( QueryResultsRow r : results ) {
    l.add( Arrays.asList( new String[] { (String) r.get( "x" ), (String) r.get( "y" ) } ) );
}

The algorithm uses stacks to handle recursion, so the method stack will not blow up.

It is also possible to use as input argument for a query both the field of a fact as in:

query contains(String $s, String $c)
    $s := String( this.contains( $c ) )
end

rule PersonNamesWithA when
    $p : Person()
    contains( $p.name, "a"; )
then
end

and more in general any kind of valid expression like in:

query checkLength(String $s, int $l)
    $s := String( length == $l )
end

rule CheckPersonNameLength when
    $i : Integer()
    $p : Person()
    checkLength( $p.name, 1 + $i + $p.age; )
then
end

The following is not yet supported:

List and Map unification
Expression unification - pred( X, X + 1, X * Y / 7 )

Type declarations and metadata in DRL

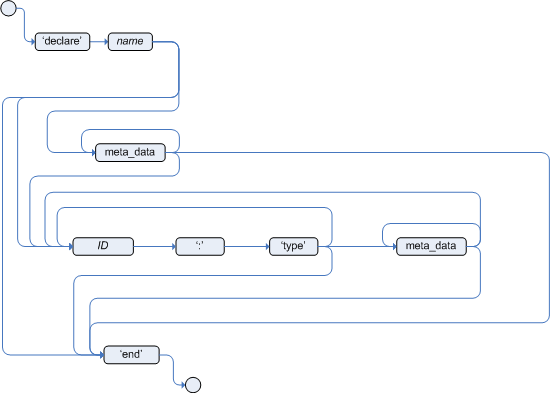

Figure 5. Type declaration

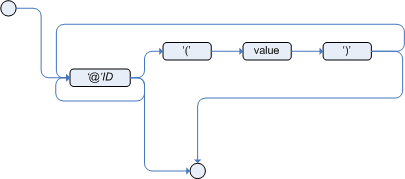

Figure 6. Metadata

Declarations in DRL files define new fact types or metadata for fact types to be used by rules in the DRL file:

New fact types: The default fact type in the java.lang package of Drools is Object, but you can declare other types in DRL files as needed. Declaring fact types in DRL files enables you to define a new fact model directly in the Drools rule engine, without creating models in a lower-level language like Java. You can also declare a new type when a domain model is already built and you want to complement this model with additional entities that are used mainly during the reasoning process.
Metadata for fact types: You can associate metadata in the format @key(value) with new or existing facts. Metadata can be any kind of data that is not represented by the fact attributes and is consistent among all instances of that fact type. The metadata can be queried at run time by the Drools rule engine and used in the reasoning process.

Type declarations without metadata in DRL

A declaration of a new fact does not require any metadata, but must include a list of attributes or fields. If a type declaration does not include identifying attributes, the Drools rule engine searches for an existing fact class in the classpath and raises an error if the class is missing.

The following example is a declaration of a new fact type Person with no metadata in a DRL file:

Example declaration of a new fact type with a rule

declare Person
  name : String
  dateOfBirth : java.util.Date
  address : Address
end

rule "Using a declared type"
  when
    $p : Person( name == "James" )
  then   // Insert Mark, who is a customer of James.
    Person mark = new Person();
    mark.setName( "Mark" );
    insert( mark );
end

In this example, the new fact type Person has the three attributes name, dateOfBirth, and address. Each attribute has a type that can be any valid Java type, including another class that you create or a fact type that you previously declared. The dateOfBirth attribute has the type java.util.Date, from the Java API, and the address attribute has the previously defined fact type Address.

To avoid writing the fully qualified name of a class every time you declare it, you can define the full class name as part of the import clause:

Example type declaration with the fully qualified class name in the import

import java.util.Date

declare Person
    name : String
    dateOfBirth : Date
    address : Address
end

When you declare a new fact type, the Drools rule engine generates at compile time a Java class representing the fact type. The generated Java class is a one-to-one JavaBeans mapping of the type definition.

For example, the following Java class is generated from the example Person type declaration:

Generated Java class for the Person fact type declaration

public class Person implements Serializable {
    private String name;
    private java.util.Date dateOfBirth;
    private Address address;

    // Empty constructor
    public Person() {...}

    // Constructor with all fields
    public Person( String name, Date dateOfBirth, Address address ) {...}

    // If keys are defined, constructor with keys
    public Person( ...keys... ) {...}

    // Getters and setters
    // `equals` and `hashCode`
    // `toString`
}

You can then use the generated class in your rules like any other fact, as illustrated in the previous rule example with the Person type declaration:

Example rule that uses the declared Person fact type

rule "Using a declared type"
  when
    $p : Person( name == "James" )
  then   // Insert Mark, who is a customer of James.
    Person mark = new Person();
    mark.setName( "Mark" );
    insert( mark );
end

Enumerative type declarations in DRL

DRL supports the declaration of enumerative types in the format declare enum <factType>, followed by a comma-separated list of values ending with a semicolon. You can then use the enumerative list in the rules in the DRL file.

For example, the following enumerative type declaration defines days of the week for an employee scheduling rule:

Example enumerative type declaration with a scheduling rule

declare enum DaysOfWeek
   SUN("Sunday"),MON("Monday"),TUE("Tuesday"),WED("Wednesday"),THU("Thursday"),FRI("Friday"),SAT("Saturday");

   fullName : String
end

rule "Using a declared Enum"
when
   $emp : Employee( dayOff == DaysOfWeek.MON )
then
   ...
end

Extended type declarations in DRL

DRL supports type declaration inheritance in the format declare <factType1> extends <factType2>. To extend a type declared in Java by a subtype declared in DRL, you repeat the parent type in a declaration statement without any fields.

For example, the following type declarations extend a Student type from a top-level Person type, and a LongTermStudent type from the Student subtype:

Example extended type declarations

import org.people.Person

declare Person end

declare Student extends Person
    school : String
end

declare LongTermStudent extends Student
    years : int
    course : String
end

Type declarations with metadata in DRL

You can associate metadata in the format @key(value) (the value is optional) with fact types or fact attributes. Metadata can be any kind of data that is not represented by the fact attributes and is consistent among all instances of that fact type. The metadata can be queried at run time by the Drools rule engine and used in the reasoning process. Any metadata that you declare before the attributes of a fact type are assigned to the fact type, while metadata that you declare after an attribute are assigned to that particular attribute.

In the following example, the two metadata attributes @author and @dateOfCreation are declared for the Person fact type, and the two metadata items @key and @maxLength are declared for the name attribute. The @key metadata attribute has no required value, so the parentheses and the value are omitted.

Example metadata declaration for fact types and attributes

import java.util.Date

declare Person
    @author( Bob )
    @dateOfCreation( 01-Feb-2009 )

    name : String @key @maxLength( 30 )
    dateOfBirth : Date
    address : Address
end

For declarations of metadata attributes for existing types, you can identify the fully qualified class name as part of the import clause for all declarations or as part of the individual declare clause:

Example metadata declaration for an imported type

import org.drools.examples.Person

declare Person
    @author( Bob )
    @dateOfCreation( 01-Feb-2009 )
end

Example metadata declaration for a declared type

declare org.drools.examples.Person
    @author( Bob )
    @dateOfCreation( 01-Feb-2009 )
end

The examples in this section that refer to the VoiceCall class assume that the sample application domain model includes the following class details:

VoiceCall fact class in an example Telecom domain model

public class VoiceCall {
  private String  originNumber;
  private String  destinationNumber;
  private Date    callDateTime;
  private long    callDuration;  // in milliseconds

  // Constructors, getters, and setters
}

@role

This tag determines whether a given fact type is handled as a regular fact or an event in the Drools rule engine during complex event processing.

Default parameter: fact

Supported parameters: fact, event

@role( fact | event )

Example: Declare VoiceCall as event type

declare VoiceCall
  @role( event )
end

@timestamp

This tag is automatically assigned to every event in the Drools rule engine. By default, the time is provided by the session clock and assigned to the event when it is inserted into the working memory of the Drools rule engine. You can specify a custom time stamp attribute instead of the default time stamp added by the session clock.

Default parameter: The time added by the Drools rule engine session clock

Supported parameters: Session clock time or custom time stamp attribute

@timestamp( <attributeName> )

Example: Declare VoiceCall timestamp attribute

declare VoiceCall
  @role( event )
  @timestamp( callDateTime )
end

@duration

This tag determines the duration time for events in the Drools rule engine. Events can be interval-based events or point-in-time events. Interval-based events have a duration time and persist in the working memory of the Drools rule engine until their duration time has lapsed. Point-in-time events have no duration and are essentially interval-based events with a duration of zero. By default, every event in the Drools rule engine has a duration of zero. You can specify a custom duration attribute instead of the default.

Default parameter: Null (zero)

Supported parameters: Custom duration attribute

@duration( <attributeName> )

Example: Declare VoiceCall duration attribute

declare VoiceCall
  @role( event )
  @timestamp( callDateTime )
  @duration( callDuration )
end

@expires

This tag determines the time duration before an event expires in the working memory of the Drools rule engine. By default, an event expires when the event can no longer match and activate any of the current rules. You can define an amount of time after which an event should expire. This tag definition also overrides the implicit expiration offset calculated from temporal constraints and sliding windows in the KIE base. This tag is available only when the Drools rule engine is running in stream mode.

Default parameter: Null (event expires after event can no longer match and activate rules)

Supported parameters: Custom timeOffset attribute in the format [#d][#h][#m][#s][[ms]]

@expires( <timeOffset> )

Example: Declare expiration offset for VoiceCall events

declare VoiceCall
  @role( event )
  @timestamp( callDateTime )
  @duration( callDuration )
  @expires( 1h35m )
end

Access to DRL declared types in application code

Declared types in DRL are typically used within the DRL files while Java models are typically used when the model is shared between rules and applications. Because declared types are generated at KIE base compile time, an application cannot access them until application run time. In some cases, an application needs to access and handle facts directly from the declared types, especially when the application wraps the Drools rule engine and provides higher-level, domain-specific user interfaces for rules management.

To handle declared types directly from the application code, you can use the org.drools.definition.type.FactType API in Drools. Through this API, you can instantiate, read, and write fields in the declared fact types.

The following example code modifies a Person fact type directly from an application:

Example application code to handle a declared fact type through the FactType API

import java.util.Date;

import org.kie.api.definition.type.FactType;
import org.kie.api.KieBase;
import org.kie.api.runtime.KieSession;

...

// Get a reference to a KIE base with the declared type:
KieBase kbase = ...

// Get the declared fact type:
FactType personType = kbase.getFactType("org.drools.examples", "Person");

// Create instances:
Object bob = personType.newInstance();

// Set attribute values:
personType.set(bob, "name", "Bob" );
personType.set(bob, "dateOfBirth", new Date());
personType.set(bob, "address", new Address("King's Road","London","404"));

// Insert the fact into a KIE session:
KieSession ksession = ...
ksession.insert(bob);
ksession.fireAllRules();

// Read attributes:
String name = (String) personType.get(bob, "name");
Date date = (Date) personType.get(bob, "dateOfBirth");

The API also includes other helpful methods, such as setting all the attributes at once, reading values from a Map collection, or reading all attributes at once into a Map collection.

Although the API behavior is similar to Java reflection, the API does not use reflection and relies on more performant accessors that are implemented with generated bytecode.

Global variables in DRL

Figure 7. Global

Global variables in DRL files typically provide data or services for the rules, such as application services used in rule consequences, and return data from rules, such as logs or values added in rule consequences. You set the global value in the working memory of the Drools rule engine through a KIE session configuration or REST operation, declare the global variable above the rules in the DRL file, and then use it in an action (then) part of the rule. For multiple global variables, use separate lines in the DRL file.

The following example illustrates a global variable list configuration for the Drools rule engine and the corresponding global variable definition in the DRL file:

Example global list configuration for the Drools rule engine

List<String> list = new ArrayList<>();
KieSession kieSession = kiebase.newKieSession();
kieSession.setGlobal( "myGlobalList", list );

Example global variable definition with a rule

global java.util.List myGlobalList;

rule "Using a global"
  when
    // Empty
  then
    myGlobalList.add( "My global list" );
end

Do not use global variables to establish conditions in rules unless a global variable has a constant immutable value. Global variables are not inserted into the working memory of the Drools rule engine, so the Drools rule engine cannot track value changes of variables.

Do not use global variables to share data between rules. Rules always reason and react to the working memory state, so if you want to pass data from rule to rule, assert the data as facts into the working memory of the Drools rule engine.

A use case for a global variable might be an instance of an email service. In your integration code that is calling the Drools rule engine, you obtain your emailService object and then set it in the working memory of the Drools rule engine. In the DRL file, you declare that you have a global of type emailService and give it the name "email", and then in your rule consequences, you can use actions such as email.sendSMS(number, message).

If you declare global variables with the same identifier in multiple packages, then you must set all the packages with the same type so that they all reference the same global value.

Timer and calendar rule attributes in DRL

Timers and calendars are DRL rule attributes that enable you to apply scheduling and timing constraints to your DRL rules. These attributes require additional configurations depending on the use case.

The timer attribute in DRL rules is a string identifying either int (interval) or cron timer definitions for scheduling a rule and supports the following formats:

Timer attribute formats

timer ( int: <initial delay> <repeat interval> )

timer ( cron: <cron expression> )

Example interval timer attributes

// Run after a 30-second delay
timer ( int: 30s )

// Run every 5 minutes after a 30-second delay each time
timer ( int: 30s 5m )

Example cron timer attribute

// Run every 15 minutes
timer ( cron:* 0/15 * * * ? )

Interval timers follow the semantics of java.util.Timer objects, with an initial delay and an optional repeat interval. Cron timers follow standard Unix cron expressions.

The following example DRL rule uses a cron timer to send an SMS text message every 15 minutes:

Example DRL rule with a cron timer

rule "Send SMS message every 15 minutes"
  timer ( cron:* 0/15 * * * ? )
  when
    $a : Alarm( on == true )
  then
    channels[ "sms" ].insert( new Sms( $a.mobileNumber, "The alarm is still on." );
end

Generally, a rule that is controlled by a timer becomes active when the rule is triggered and the rule consequence is executed repeatedly, according to the timer settings. The execution stops when the rule condition no longer matches incoming facts. However, the way the Drools rule engine handles rules with timers depends on whether the Drools rule engine is in active mode or in passive mode.

By default, the Drools rule engine runs in passive mode and evaluates rules, according to the defined timer settings, when a user or an application explicitly calls fireAllRules(). Conversely, if a user or application calls fireUntilHalt(), the Drools rule engine starts in active mode and evaluates rules continually until the user or application explicitly calls halt().

When the Drools rule engine is in active mode, rule consequences are executed even after control returns from a call to fireUntilHalt() and the Drools rule engine remains reactive to any changes made to the working memory. For example, removing a fact that was involved in triggering the timer rule execution causes the repeated execution to terminate, and inserting a fact so that some rule matches causes that rule to be executed. However, the Drools rule engine is not continually active, but is active only after a rule is executed. Therefore, the Drools rule engine does not react to asynchronous fact insertions until the next execution of a timer-controlled rule. Disposing a KIE session terminates all timer activity.

When the Drools rule engine is in passive mode, rule consequences of timed rules are evaluated only when fireAllRules() is invoked again. However, you can change the default timer-execution behavior in passive mode by configuring the KIE session with a TimedRuleExecutionOption option, as shown in the following example:

KIE session configuration to automatically execute timed rules in passive mode

KieSessionConfiguration ksconf = KieServices.Factory.get().newKieSessionConfiguration();
ksconf.setOption( TimedRuleExecutionOption.YES );
KSession ksession = kbase.newKieSession(ksconf, null);

You can additionally set a FILTERED specification on the TimedRuleExecutionOption option that enables you to define a callback to filter those rules, as shown in the following example:

KIE session configuration to filter which timed rules are automatically executed

KieSessionConfiguration ksconf = KieServices.Factory.get().newKieSessionConfiguration();
conf.setOption( new TimedRuleExecutionOption.FILTERED(new TimedRuleExecutionFilter() {
    public boolean accept(Rule[] rules) {
        return rules[0].getName().equals("MyRule");
    }
}) );

For interval timers, you can also use an expression timer with expr instead of int to define both the delay and interval as an expression instead of a fixed value.

The following example DRL file declares a fact type with a delay and period that are then used in the subsequent rule with an expression timer:

Example rule with an expression timer

declare Bean
  delay   : String = "30s"
  period  : long = 60000
end

rule "Expression timer"
  timer ( expr: $d, $p )
  when
    Bean( $d : delay, $p : period )
  then
    // Actions
end

The expressions, such as $d and $p in this example, can use any variable defined in the pattern-matching part of the rule. The variable can be any String value that can be parsed into a time duration or any numeric value that is internally converted in a long value for a duration in milliseconds.

Both interval and expression timers can use the following optional parameters:

start and end: A Date or a String representing a Date or a long value. The value can also be a Number that is transformed into a Java Date in the format new Date( ((Number) n).longValue() ).
repeat-limit: An integer that defines the maximum number of repetitions allowed by the timer. If both the end and the repeat-limit parameters are set, the timer stops when the first of the two is reached.

Example timer attribute with optional start, end, and repeat-limit parameters

timer (int: 30s 1h; start=3-JAN-2020, end=4-JAN-2020, repeat-limit=50)

In this example, the rule is scheduled for every hour, after a delay of 30 seconds each hour, beginning on 3 January 2020 and ending either on 4 January 2020 or when the cycle repeats 50 times.

If the system is paused (for example, the session is serialized and then later deserialized), the rule is scheduled only one time to recover from missing activations regardless of how many activations were missed during the pause, and then the rule is subsequently scheduled again to continue in sync with the timer setting.

The calendar attribute in DRL rules is a Quartz calendar definition for scheduling a rule and supports the following format:

Calendar attribute format

calendars "<definition or registered name>"

Example calendar attributes

// Exclude non-business hours
calendars "* * 0-7,18-23 ? * *"

// Weekdays only, as registered in the KIE session
calendars "weekday"

You can adapt a Quartz calendar based on the Quartz calendar API and then register the calendar in the KIE session, as shown in the following example:

Adapting a Quartz Calendar

Calendar weekDayCal = QuartzHelper.quartzCalendarAdapter(org.quartz.Calendar quartzCal)

Registering the calendar in the KIE session

ksession.getCalendars().set( "weekday", weekDayCal );

You can use calendars with standard rules and with rules that use timers. The calendar attribute can contain one or more comma-separated calendar names written as String literals.

The following example rules use both calendars and timers to schedule the rules:

Example rules with calendars and timers

rule "Weekdays are high priority"
  calendars "weekday"
  timer ( int:0 1h )
  when
    Alarm()
  then
    send( "priority high - we have an alarm" );
end

rule "Weekends are low priority"
  calendars "weekend"
  timer ( int:0 4h )
  when
    Alarm()
  then
    send( "priority low - we have an alarm" );
end

Rule conditions in DRL (WHEN)

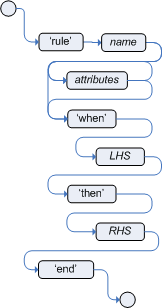

Figure 8. Rule

Figure 9. Conditional element in a rule

The when part of a DRL rule (also known as the Left Hand Side (LHS) of the rule) contains the conditions that must be met to execute an action. Conditions consist of a series of stated patterns and constraints, with optional bindings and supported rule condition elements (keywords), based on the available data objects in the package. For example, if a bank requires loan applicants to have over 21 years of age, then the when condition of an "Underage" rule would be Applicant( age < 21 ).

DRL uses when instead of if because if is typically part of a procedural execution flow during which a condition is checked at a specific point in time. In contrast, when indicates that the condition evaluation is not limited to a specific evaluation sequence or point in time, but instead occurs continually at any time. Whenever the condition is met, the actions are executed.

If the when section is empty, then the conditions are considered to be true and the actions in the then section are executed the first time a fireAllRules() call is made in the Drools rule engine. This is useful if you want to use rules to set up the Drools rule engine state.

The following example rule uses empty conditions to insert a fact every time the rule is executed:

Example rule without conditions

rule "Always insert applicant"
  when
    // Empty
  then   // Actions to be executed once
    insert( new Applicant() );
end

// The rule is internally rewritten in the following way:

rule "Always insert applicant"
  when
    eval( true )
  then
    insert( new Applicant() );
end

If rule conditions use multiple patterns with no defined keyword conjunctions (such as and, or, or not), the default conjunction is and:

Example rule without keyword conjunctions

rule "Underage"
  when
    application : LoanApplication()
    Applicant( age < 21 )
  then
    // Actions
end

// The rule is internally rewritten in the following way:

rule "Underage"
  when
    application : LoanApplication()
    and Applicant( age < 21 )
  then
    // Actions
end

Patterns and constraints

A pattern in a DRL rule condition is the segment to be matched by the Drools rule engine. A pattern can potentially match each fact that is inserted into the working memory of the Drools rule engine. A pattern can also contain constraints to further define the facts to be matched.

The railroad diagram below shows the syntax for this:

Figure 10. Pattern

In the simplest form, with no constraints, a pattern matches a fact of the given type. In the following example, the type is Person, so the pattern will match against all Person objects in the working memory of the Drools rule engine:

Example pattern for a single fact type

Person()

The type does not need to be the actual class of some fact object. Patterns can refer to superclasses or even interfaces, potentially matching facts from many different classes. For example, the following pattern matches all objects in the working memory of the Drools rule engine:

Example pattern for all objects

Object() // Matches all objects in the working memory

The parentheses of a pattern enclose the constraints, such as the following constraint on the person’s age:

Example pattern with a constraint

Person( age == 50 )

A constraint is an expression that returns true or false. Pattern constraints in DRL are essentially Java expressions with some enhancements, such as property access, and some differences, such as equals() and !equals() semantics for == and != (instead of the usual same and not same semantics).

Any JavaBeans property can be accessed directly from pattern constraints. A bean property is exposed internally using a standard JavaBeans getter that takes no arguments and returns something. For example, the age property is written as age in DRL instead of the getter getAge():

DRL constraint syntax with JavaBeans properties

Person( age == 50 )

// This is the same as the following getter format:

Person( getAge() == 50 )

Drools uses the standard JDK Introspector class to achieve this mapping, so it follows the standard JavaBeans specification. For optimal Drools rule engine performance, use the property access format, such as age, instead of using getters explicitly, such as getAge().

Do not use property accessors to change the state of the object in a way that might affect the rules because the Drools rule engine caches the results of the match between invocations for higher efficiency.

For example, do not use property accessors in the following ways:

public int getAge() {
    age++; // Do not do this.
    return age;
}

public int getAge() {
    Date now = DateUtil.now(); // Do not do this.
    return DateUtil.differenceInYears(now, birthday);
}

Instead of following the second example, insert a fact that wraps the current date in the working memory and update that fact between fireAllRules() as needed.

However, if the getter of a property cannot be found, the compiler uses the property name as a fallback method name, without arguments:

Fallback method if object is not found

Person( age == 50 )

// If `Person.getAge()` does not exist, the compiler uses the following syntax:

Person( age() == 50 )

You can also nest access properties in patterns, as shown in the following example. Nested properties are indexed by the Drools rule engine.

Example pattern with nested property access

Person( address.houseNumber == 50 )

// This is the same as the following format:

Person( getAddress().getHouseNumber() == 50 )

In stateful KIE sessions, use nested accessors carefully because the working memory of the Drools rule engine is not aware of any of the nested values and does not detect when they change. Either consider the nested values immutable while any of their parent references are inserted into the working memory, or, if you want to modify a nested value, mark all of the outer facts as updated. In the previous example, when the houseNumber property changes, any Person with that Address must be marked as updated.

You can use any Java expression that returns a boolean value as a constraint inside the parentheses of a pattern. Java expressions can be mixed with other expression enhancements, such as property access:

Example pattern with a constraint using property access and Java expression

Person( age == 50 )

You can change the evaluation priority by using parentheses, as in any logical or mathematical expression:

Example evaluation order of constraints

Person( age > 100 && ( age % 10 == 0 ) )

You can also reuse Java methods in constraints, as shown in the following example:

Example constraints with reused Java methods

Person( Math.round( weight / ( height * height ) ) < 25.0 )

Do not use constraints to change the state of the object in a way that might affect the rules because the Drools rule engine caches the results of the match between invocations for higher efficiency. Any method that is executed on a fact in the rule conditions must be a read-only method. Also, the state of a fact should not change between rule invocations unless those facts are marked as updated in the working memory on every change.

For example, do not use a pattern constraint in the following ways:

Person( incrementAndGetAge() == 10 ) // Do not do this.

Person( System.currentTimeMillis() % 1000 == 0 ) // Do not do this.

Standard Java operator precedence applies to constraint operators in DRL, and DRL operators follow standard Java semantics except for the == and != operators.

The == operator uses null-safe equals() semantics instead of the usual same semantics. For example, the pattern Person( firstName == "John" ) is similar to java.util.Objects.equals(person.getFirstName(), "John"), and because "John" is not null, the pattern is also similar to "John".equals(person.getFirstName()).

The != operator uses null-safe !equals() semantics instead of the usual not same semantics. For example, the pattern Person( firstName != "John" ) is similar to !java.util.Objects.equals(person.getFirstName(), "John").

If the field and the value of a constraint are of different types, the Drools rule engine uses type coercion to resolve the conflict and reduce compilation errors. For instance, if "ten" is provided as a string in a numeric evaluator, a compilation error occurs, whereas "10" is coerced to a numeric 10. In coercion, the field type always takes precedence over the value type:

Example constraint with a value that is coerced

Person( age == "10" ) // "10" is coerced to 10

For groups of constraints, you can use a delimiting comma , to use implicit and connective semantics:

Example patterns with multiple constraints

// Person is at least 50 years old and weighs at least 80 kilograms:
Person( age > 50, weight > 80 )

// Person is at least 50 years old, weighs at least 80 kilograms, and is taller than 2 meters:
Person( age > 50, weight > 80, height > 2 )

Although the && and , operators have the same semantics, they are resolved with different priorities. The && operator precedes the || operator, and both the && and || operators together precede the , operator. Use the comma operator at the top-level constraint for optimal Drools rule engine performance and human readability.

You cannot embed a comma operator in a composite constraint expression, such as in parentheses:

Example of misused comma in composite constraint expression

// Do not use the following format:
Person( ( age > 50, weight > 80 ) || height > 2 )

// Use the following format instead:
Person( ( age > 50 && weight > 80 ) || height > 2 )

Bound variables in patterns and constraints

You can bind variables to patterns and constraints to refer to matched objects in other portions of a rule. Bound variables can help you define rules more efficiently or more consistently with how you annotate facts in your data model. To differentiate more easily between variables and fields in a rule, use the standard format $variable for variables, especially in complex rules. This convention is helpful but not required in DRL.

For example, the following DRL rule uses the variable $p for a pattern with the Person fact:

Pattern with a bound variable

rule "simple rule"
  when
    $p : Person()
  then
    System.out.println( "Person " + $p );
end

Similarly, you can also bind variables to properties in pattern constraints, as shown in the following example:

// Two persons of the same age:
Person( $firstAge : age ) // Binding
Person( age == $firstAge ) // Constraint expression

Constraint binding considers only the first atomic expression that follows it. In the following example the pattern only binds the age of the person to the variable $a:

Person( $a : age * 2 < 100 )

For clearer and more efficient rule definitions, separate constraint bindings and constraint expressions. Although mixed bindings and expressions are supported, which can complicate patterns and affect evaluation efficiency.

// Do not use the following format:
Person( $a : age * 2 < 100 )

// Use the following format instead:
Person( age * 2 < 100, $a : age )

In the preceding example, if you want to bind to the variable $a the double of the person’s age, you must make it an atomic expression by wrapping it in parentheses as shown in the following example:

Person( $a : (age * 2) )

The Drools rule engine does not support bindings to the same declaration, but does support unification of arguments across several properties. While positional arguments are always processed with unification, the unification symbol := exists for named arguments.

The following example patterns unify the age property across two Person facts:

Example pattern with unification

Person( $age := age )
Person( $age := age )

Unification declares a binding for the first occurrence and constrains to the same value of the bound field for sequence occurrences.

Nested constraints and inline casts

In some cases, you might need to access multiple properties of a nested object, as shown in the following example:

Example pattern to access multiple properties

Person( name == "mark", address.city == "london", address.country == "uk" )

You can group these property accessors to nested objects with the syntax .( <constraints> ) for more readable rules, as shown in the following example:

Example pattern with grouped constraints

Person( name == "mark", address.( city == "london", country == "uk") )

The period prefix . differentiates the nested object constraints from a method call.

When you work with nested objects in patterns, you can use the syntax <type>#<subtype> to cast to a subtype and make the getters from the parent type available to the subtype. You can use either the object name or fully qualified class name, and you can cast to one or multiple subtypes, as shown in the following examples:

Example patterns with inline casting to a subtype

// Inline casting with subtype name:
Person( name == "mark", address#LongAddress.country == "uk" )

// Inline casting with fully qualified class name:
Person( name == "mark", address#org.domain.LongAddress.country == "uk" )

// Multiple inline casts:
Person( name == "mark", address#LongAddress.country#DetailedCountry.population > 10000000 )

These example patterns cast Address to LongAddress, and additionally to DetailedCountry in the last example, making the parent getters available to the subtypes in each case.

You can use the instanceof operator to infer the results of the specified type in subsequent uses of that field with the pattern, as shown in the following example:

Person( name == "mark", address instanceof LongAddress, address.country == "uk" )

If an inline cast is not possible (for example, if instanceof returns false), the evaluation is considered false.

Date literal in constraints

By default, the Drools rule engine supports the date format dd-mmm-yyyy. You can customize the date format, including a time format mask if needed, by providing an alternative format mask with the system property drools.dateformat="dd-mmm-yyyy hh:mm". You can also customize the date format by changing the language locale with the drools.defaultlanguage and drools.defaultcountry system properties (for example, the locale of Thailand is set as drools.defaultlanguage=th and drools.defaultcountry=TH).

Example pattern with a date literal restriction

Person( bornBefore < "27-Oct-2009" )

Auto-boxing and primitive types

Drools attempts to preserve numbers in their primitive or object wrapper form, so a variable bound to an int primitive when used in a code block or expression will no longer need manual unboxing; unlike early Drools versions where all primitives were autoboxed, requiring manual unboxing. A variable bound to an object wrapper will remain as an object; the existing JDK 1.5 and JDK 5 rules to handle auto-boxing and unboxing apply in this case. When evaluating field constraints, the system attempts to coerce one of the values into a comparable format; so a primitive is comparable to an object wrapper.

Supported operators in DRL pattern constraints

DRL supports standard Java semantics for operators in pattern constraints, with some exceptions and with some additional operators that are unique in DRL. The following list summarizes the operators that are handled differently in DRL constraints than in standard Java semantics or that are unique in DRL constraints.

.(), #

Use the .() operator to group property accessors to nested objects, and use the # operator to cast to a subtype in nested objects. Casting to a subtype makes the getters from the parent type available to the subtype. You can use either the object name or fully qualified class name, and you can cast to one or multiple subtypes.

Example patterns with nested objects

// Ungrouped property accessors:
Person( name == "mark", address.city == "london", address.country == "uk" )

// Grouped property accessors:
Person( name == "mark", address.( city == "london", country == "uk") )

The period prefix . differentiates the nested object constraints from a method call.

Example patterns with inline casting to a subtype

// Inline casting with subtype name:
Person( name == "mark", address#LongAddress.country == "uk" )

// Inline casting with fully qualified class name:
Person( name == "mark", address#org.domain.LongAddress.country == "uk" )

// Multiple inline casts:
Person( name == "mark", address#LongAddress.country#DetailedCountry.population > 10000000 )

!.

Use this operator to dereference a property in a null-safe way. The value to the left of the !. operator must be not null (interpreted as != null) in order to give a positive result for pattern matching.

Example constraint with null-safe dereferencing

Person( $streetName : address!.street )

// This is internally rewritten in the following way:

Person( address != null, $streetName : address.street )

[]

Use this operator to access a List value by index or a Map value by key.

Example constraints with List and Map access

// The following format is the same as `childList(0).getAge() == 18`:
Person(childList[0].age == 18)

// The following format is the same as `credentialMap.get("jdoe").isValid()`:
Person(credentialMap["jdoe"].valid)

<, <=, >, >=

Use these operators on properties with natural ordering. For example, for Date fields, the < operator means before, and for String fields, the operator means alphabetically before. These properties apply only to comparable properties.

Example constraints with before operator

Person( birthDate < $otherBirthDate )

Person( firstName < $otherFirstName )

==, !=

Use these operators as equals() and !equals() methods in constraints, instead of the usual same and not same semantics.

Example constraint with null-safe equality

Person( firstName == "John" )

// This is similar to the following formats:

java.util.Objects.equals(person.getFirstName(), "John")
"John".equals(person.getFirstName())

Example constraint with null-safe not equality

Person( firstName != "John" )

// This is similar to the following format:

!java.util.Objects.equals(person.getFirstName(), "John")

&&, ||

Use these operators to create an abbreviated combined relation condition that adds more than one restriction on a field. You can group constraints with parentheses () to create a recursive syntax pattern.

Example constraints with abbreviated combined relation

// Simple abbreviated combined relation condition using a single `&&`:
Person(age > 30 && < 40)

// Complex abbreviated combined relation using groupings:
Person(age ((> 30 && < 40) || (> 20 && < 25)))

// Mixing abbreviated combined relation with constraint connectives:
Person(age > 30 && < 40 || location == "london")

Figure 11. Abbreviated combined relation condition

abbreviatedCombinedRelationConditionGroup

Figure 12. Abbreviated combined relation condition withparentheses

matches, not matches

Use these operators to indicate that a field matches or does not match a specified Java regular expression. Typically, the regular expression is a String literal, but variables that resolve to a valid regular expression are also supported. These operators apply only to String properties. If you use matches against a null value, the resulting evaluation is always false. If you use not matches against a null value, the resulting evaluation is always true. As in Java, regular expressions that you write as String literals must use a double backslash \\ to escape.

Example constraint to match or not match a regular expression

Person( country matches "(USA)?\\S*UK" )

Person( country not matches "(USA)?\\S*UK" )

contains, not contains

Use these operators to verify whether a field that is an Array or a Collection contains or does not contain a specified value. These operators apply to Array or Collection properties, but you can also use these operators in place of String.contains() and !String.contains() constraints checks.

Example constraints with contains and not contains for a Collection

// Collection with a specified field:
FamilyTree( countries contains "UK" )

FamilyTree( countries not contains "UK" )


// Collection with a variable:
FamilyTree( countries contains $var )

FamilyTree( countries not contains $var )

Example constraints with contains and not contains for a String literal

// Sting literal with a specified field:
Person( fullName contains "Jr" )

Person( fullName not contains "Jr" )


// String literal with a variable:
Person( fullName contains $var )

Person( fullName not contains $var )

For backward compatibility, the excludes operator is a supported synonym for not contains.

memberOf, not memberOf

Use these operators to verify whether a field is a member of or is not a member of an Array or a Collection that is defined as a variable. The Array or Collection must be a variable.

Example constraints with memberOf and not memberOf with a Collection

FamilyTree( person memberOf $europeanDescendants )

FamilyTree( person not memberOf $europeanDescendants )

soundslike

Use this operator to verify whether a word has almost the same sound, using English pronunciation, as the given value (similar to the matches operator). This operator uses the Soundex algorithm.

Example constraint with soundslike

// Match firstName "Jon" or "John":
Person( firstName soundslike "John" )

str

Use this operator to verify whether a field that is a String starts with or ends with a specified value. You can also use this operator to verify the length of the String.

Example constraints with str

// Verify what the String starts with:
Message( routingValue str[startsWith] "R1" )

// Verify what the String ends with:
Message( routingValue str[endsWith] "R2" )

// Verify the length of the String:
Message( routingValue str[length] 17 )

in, notin

Use these operators to specify more than one possible value to match in a constraint (compound value restriction). This functionality of compound value restriction is supported only in the in and not in operators. The second operand of these operators must be a comma-separated list of values enclosed in parentheses. You can provide values as variables, literals, return values, or qualified identifiers. These operators are internally rewritten as a list of multiple restrictions using the operators == or !=.

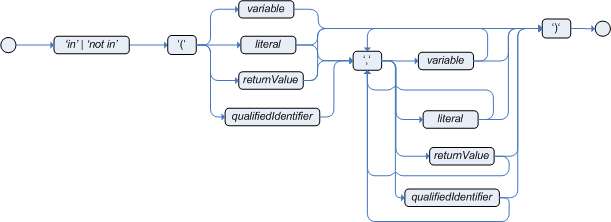

Figure 13. compoundValueRestriction

Example constraints with in and notin

Person( $color : favoriteColor )
Color( type in ( "red", "blue", $color ) )

Person( $color : favoriteColor )
Color( type notin ( "red", "blue", $color ) )

Operator precedence in DRL pattern constraints

DRL supports standard Java operator precedence for applicable constraint operators, with some exceptions and with some additional operators that are unique in DRL. The following table lists DRL operator precedence where applicable, from highest to lowest precedence:

Table 1. Operator precedence in DRL pattern constraints
Operator type	Operators	Notes
Nested or null-safe property access	`.`, `.()`, `!.`	Not standard Java semantics
`List` or `Map` access	`[]`	Not standard Java semantics
Constraint binding	`:`	Not standard Java semantics
Multiplicative	`*`, `/%`
Additive	`+`, `-`
Shift	`>>`, `>>>`, `<<`
Relational	`<`, `<=`, `>`, `>=`, `instanceof`
Equality	`== !=`	Uses `equals()` and `!equals()` semantics, not standard Java `same` and `not same` semantics
Non-short-circuiting `AND`	`&`
Non-short-circuiting exclusive `OR`	`^`
Non-short-circuiting inclusive `OR`	`\|`
Logical `AND`	`&&`
Logical `OR`	`\|\|`
Ternary	`? :`
Comma-separated `AND`	`,`	Not standard Java semantics

Supported rule condition elements in DRL (keywords)

DRL supports the following rule condition elements (keywords) that you can use with the patterns that you define in DRL rule conditions:

and

Use this to group conditional components into a logical conjunction. Infix and prefix and are supported. You can group patterns explicitly with parentheses (). By default, all listed patterns are combined with and when no conjunction is specified.

Figure 14. infixAnd

Figure 15. prefixAnd

Example patterns with and

//Infix `and`:
Color( colorType : type ) and Person( favoriteColor == colorType )

//Infix `and` with grouping:
(Color( colorType : type ) and (Person( favoriteColor == colorType ) or Person( favoriteColor == colorType ))

// Prefix `and`:
(and Color( colorType : type ) Person( favoriteColor == colorType ))

// Default implicit `and`:
Color( colorType : type )
Person( favoriteColor == colorType )

Do not use a leading declaration binding with the and keyword (as you can with or, for example). A declaration can only reference a single fact at a time, and if you use a declaration binding with and, then when and is satisfied, it matches both facts and results in an error.

Example misuse of and

// Causes compile error:
$person : (Person( name == "Romeo" ) and Person( name == "Juliet"))

or

Use this to group conditional components into a logical disjunction. Infix and prefix or are supported. You can group patterns explicitly with parentheses (). You can also use pattern binding with or, but each pattern must be bound separately.

Figure 16. infixOr

Figure 17. prefixOr

Example patterns with or

//Infix `or`:
Color( colorType : type ) or Person( favoriteColor == colorType )

//Infix `or` with grouping:
(Color( colorType : type ) or (Person( favoriteColor == colorType ) and Person( favoriteColor == colorType ))

// Prefix `or`:
(or Color( colorType : type ) Person( favoriteColor == colorType ))

Example patterns with or and pattern binding

pensioner : (Person( sex == "f", age > 60 ) or Person( sex == "m", age > 65 ))

(or pensioner : Person( sex == "f", age > 60 )
    pensioner : Person( sex == "m", age > 65 ))

The Drools rule engine does not directly interpret the or element but uses logical transformations to rewrite a rule with or as a number of sub-rules. This process ultimately results in a rule that has a single or as the root node and one sub-rule for each of its condition elements. Each sub-rule is activated and executed like any normal rule, with no special behavior or interaction between the sub-rules.

Therefore, consider the or condition element a shortcut for generating two or more similar rules that, in turn, can create multiple activations when two or more terms of the disjunction are true.

exists

Use this to specify facts and constraints that must exist. This option is triggered on only the first match, not subsequent matches. If you use this element with multiple patterns, enclose the patterns with parentheses ().

Figure 18. Exists

Example patterns with exists

exists Person( firstName == "John")

exists (Person( firstName == "John", age == 42 ))

exists (Person( firstName == "John" ) and
        Person( lastName == "Doe" ))

not

Use this to specify facts and constraints that must not exist. If you use this element with multiple patterns, enclose the patterns with parentheses ().

Figure 19. Not

Example patterns with not

not Person( firstName == "John")

not (Person( firstName == "John", age == 42 ))

not (Person( firstName == "John" ) and
     Person( lastName == "Doe" ))

forall

Use this to verify whether all facts that match the first pattern match all the remaining patterns. When a forall construct is satisfied, the rule evaluates to true. This element is a scope delimiter, so it can use any previously bound variable, but no variable bound inside of it is available for use outside of it.

Figure 20. Forall

Example rule with forall

rule "All full-time employees have red ID badges"
  when
    forall( $emp : Employee( type == "fulltime" )
                   Employee( this == $emp, badgeColor = "red" ) )
  then
    // True, all full-time employees have red ID badges.
end

In this example, the rule selects all Employee objects whose type is "fulltime". For each fact that matches this pattern, the rule evaluates the patterns that follow (badge color) and if they match, the rule evaluates to true.

To state that all facts of a given type in the working memory of the Drools rule engine must match a set of constraints, you can use forall with a single pattern for simplicity.

Example rule with forall and a single pattern

rule "All full-time employees have red ID badges"
  when
    forall( Employee( badgeColor = "red" ) )
  then
    // True, all full-time employees have red ID badges.
end

You can use forall constructs with multiple patterns or nest them with other condition elements, such as inside a not element construct.

Example rule with forall and multiple patterns

rule "All employees have health and dental care programs"
  when
    forall( $emp : Employee()
            HealthCare( employee == $emp )
            DentalCare( employee == $emp )
          )
  then
    // True, all employees have health and dental care.
end

Example rule with forall and not

rule "Not all employees have health and dental care"
  when
    not ( forall( $emp : Employee()
                  HealthCare( employee == $emp )
                  DentalCare( employee == $emp ) )
        )
  then
    // True, not all employees have health and dental care.
end

The format forall( p1 p2 p3 …) is equivalent to not( p1 and not( and p2 p3 … ) ).

from

Use this to specify a data source for a pattern. This enables the Drools rule engine to reason over data that is not in the working memory. The data source can be a sub-field on a bound variable or the result of a method call. The expression used to define the object source is any expression that follows regular MVEL syntax. Therefore, the from element enables you to easily use object property navigation, execute method calls, and access maps and collection elements.

Figure 21. from

Example rule with from and pattern binding

rule "Validate zipcode"
  when
    Person( $personAddress : address )
    Address( zipcode == "23920W" ) from $personAddress
  then
    // Zip code is okay.
end

Example rule with from and a graph notation

rule "Validate zipcode"
  when
    $p : Person()
    $a : Address( zipcode == "23920W" ) from $p.address
  then
    // Zip code is okay.
end

Example rule with from to iterate over all objects

rule "Apply 10% discount to all items over US$ 100 in an order"
  when
    $order : Order()
    $item  : OrderItem( value > 100 ) from $order.items
  then
    // Apply discount to `$item`.
end

For large collections of objects, instead of adding an object with a large graph that the Drools rule engine must iterate over frequently, add the collection directly to the KIE session and then join the collection in the condition, as shown in the following example:

when
  $order : Order()
  OrderItem( value > 100, order == $order )

Example rule with from and lock-on-active rule attribute

rule "Assign people in North Carolina (NC) to sales region 1"
  ruleflow-group "test"
  lock-on-active true
  when
    $p : Person()
    $a : Address( state == "NC" ) from $p.address
  then
    modify ($p) {} // Assign the person to sales region 1.
end

rule "Apply a discount to people in the city of Raleigh"
  ruleflow-group "test"
  lock-on-active true
  when
    $p : Person()
    $a : Address( city == "Raleigh" ) from $p.address
  then
    modify ($p) {} // Apply discount to the person.
end

Using from with lock-on-active rule attribute can result in rules not being executed. You can address this issue in one of the following ways:

Avoid using the from element when you can insert all facts into the working memory of the Drools rule engine or use nested object references in your constraint expressions.
Place the variable used in the modify() block as the last sentence in your rule condition.
Avoid using the lock-on-active rule attribute when you can explicitly manage how rules within the same ruleflow group place activations on one another.

The pattern that contains a from clause cannot be followed by another pattern starting with a parenthesis. The reason for this restriction is that the DRL parser reads the from expression as "from $l (String() or Number())" and it cannot differentiate this expression from a function call. The simplest workaround to this is to wrap the from clause in parentheses, as shown in the following example:

Example rules with from used incorrectly and correctly

// Do not use `from` in this way:
rule R
  when
    $l : List()
    String() from $l
    (String() or Number())
  then
    // Actions
end

// Use `from` in this way instead:
rule R
  when
    $l : List()
    (String() from $l)
    (String() or Number())
  then
    // Actions
end

entry-point

Use this to define an entry point, or event stream, corresponding to a data source for the pattern. This element is typically used with the from condition element. You can declare an entry point for events so that the Drools rule engine uses data from only that entry point to evaluate the rules. You can declare an entry point either implicitly by referencing it in DRL rules or explicitly in your Java application.

Example rule with from entry-point

rule "Authorize withdrawal"
  when
    WithdrawRequest( $ai : accountId, $am : amount ) from entry-point "ATM Stream"
    CheckingAccount( accountId == $ai, balance > $am )
  then
    // Authorize withdrawal.
end

Example Java application code with EntryPoint object and inserted facts

import org.kie.api.runtime.KieSession;
import org.kie.api.runtime.rule.EntryPoint;

// Create your KIE base and KIE session as usual:
KieSession session = ...

// Create a reference to the entry point:
EntryPoint atmStream = session.getEntryPoint("ATM Stream");

// Start inserting your facts into the entry point:
atmStream.insert(aWithdrawRequest);

collect

Use this to define a collection of objects that the rule can use as part of the condition. The rule obtains the collection either from a specified source or from the working memory of the Drools rule engine. The result pattern of the collect element can be any concrete class that implements the java.util.Collection interface and provides a default no-arg public constructor. You can use Java collections like List, LinkedList, and HashSet, or your own class. If variables are bound before the collect element in a condition, you can use the variables to constrain both your source and result patterns. However, any binding made inside the collect element is not available for use outside of it.

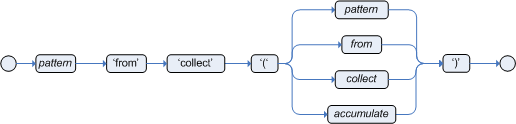

Figure 22. Collect

Example rule with collect

import java.util.List

rule "Raise priority when system has more than three pending alarms"
  when
    $system : System()
    $alarms : List( size >= 3 )
              from collect( Alarm( system == $system, status == 'pending' ) )
  then
    // Raise priority because `$system` has three or more `$alarms` pending.
end

In this example, the rule assesses all pending alarms in the working memory of the Drools rule engine for each given system and groups them in a List. If three or more alarms are found for a given system, the rule is executed.

You can also use the collect element with nested from elements, as shown in the following example:

Example rule with collect and nested from

import java.util.LinkedList;

rule "Send a message to all parents"
  when
    $town : Town( name == 'Paris' )
    $mothers : LinkedList()
               from collect( Person( children > 0 )
                             from $town.getPeople()
                           )
  then
    // Send a message to all parents.
end

accumulate

Use this to iterate over a collection of objects, execute custom actions for each of the elements, and return one or more result objects (if the constraints evaluate to true). This element is a more flexible and powerful form of the collect condition element. You can use predefined functions in your accumulate conditions or implement custom functions as needed. You can also use the abbreviation acc for accumulate in rule conditions.

Use the following format to define accumulate conditions in rules:

Preferred format for accumulate

accumulate( <source pattern>; <functions> [;<constraints>] )

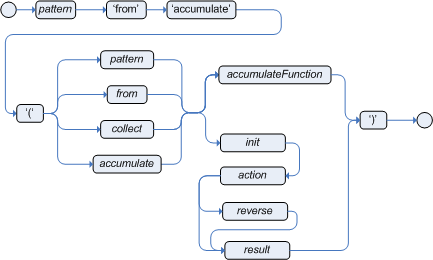

Figure 23. Accumulate

Although the Drools rule engine supports alternate formats for the accumulate element for backward compatibility, this format is preferred for optimal performance in rules and applications.

The Drools rule engine supports the following predefined accumulate functions. These functions accept any expression as input.

average
min
max
count
sum
collectList
collectSet

In the following example rule, min, max, and average are accumulate functions that calculate the minimum, maximum, and average temperature values over all the readings for each sensor:

Example rule with accumulate to calculate temperature values

rule "Raise alarm"
  when
    $s : Sensor()
    accumulate( Reading( sensor == $s, $temp : temperature );
                $min : min( $temp ),
                $max : max( $temp ),
                $avg : average( $temp );
                $min < 20, $avg > 70 )
  then
    // Raise the alarm.
end

The following example rule uses the average function with accumulate to calculate the average profit for all items in an order:

Example rule with accumulate to calculate average profit

rule "Average profit"
  when
    $order : Order()
    accumulate( OrderItem( order == $order, $cost : cost, $price : price );
                $avgProfit : average( 1 - $cost / $price ) )
  then
    // Average profit for `$order` is `$avgProfit`.
end

To use custom, domain-specific functions in accumulate conditions, create a Java class that implements the org.kie.api.runtime.rule.AccumulateFunction interface. For example, the following Java class defines a custom implementation of an AverageData function:

Example Java class with custom implementation of average function

// An implementation of an accumulator capable of calculating average values

public class AverageAccumulateFunction implements org.kie.api.runtime.rule.AccumulateFunction<AverageAccumulateFunction.AverageData> {

    public void readExternal(ObjectInput in) throws IOException, ClassNotFoundException {

    }

    public void writeExternal(ObjectOutput out) throws IOException {

    }

    public static class AverageData implements Externalizable {
        public int    count = 0;
        public double total = 0;

        public AverageData() {}

        public void readExternal(ObjectInput in) throws IOException, ClassNotFoundException {
            count   = in.readInt();
            total   = in.readDouble();
        }

        public void writeExternal(ObjectOutput out) throws IOException {
            out.writeInt(count);
            out.writeDouble(total);
        }

    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#createContext()
     */
    public AverageData createContext() {
        return new AverageData();
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#init(java.io.Serializable)
     */
    public void init(AverageData context) {
        context.count = 0;
        context.total = 0;
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#accumulate(java.io.Serializable, java.lang.Object)
     */
    public void accumulate(AverageData context,
                           Object value) {
        context.count++;
        context.total += ((Number) value).doubleValue();
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#reverse(java.io.Serializable, java.lang.Object)
     */
    public void reverse(AverageData context, Object value) {
        context.count--;
        context.total -= ((Number) value).doubleValue();
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#getResult(java.io.Serializable)
     */
    public Object getResult(AverageData context) {
        return new Double( context.count == 0 ? 0 : context.total / context.count );
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#supportsReverse()
     */
    public boolean supportsReverse() {
        return true;
    }

    /* (non-Javadoc)
     * @see org.kie.api.runtime.rule.AccumulateFunction#getResultType()
     */
    public Class< ? > getResultType() {
        return Number.class;
    }

}

To use the custom function in a DRL rule, import the function using the import accumulate statement:

Format to import a custom function

import accumulate <class_name> <function_name>

Example rule with the imported average function

import accumulate AverageAccumulateFunction.AverageData average

rule "Average profit"
  when
    $order : Order()
    accumulate( OrderItem( order == $order, $cost : cost, $price : price );
                $avgProfit : average( 1 - $cost / $price ) )
  then
    // Average profit for `$order` is `$avgProfit`.
end

For backward compatibility, the Drools rule engine also supports the configuration of accumulate functions through configuration files and system properties, but this is a deprecated method. To configure the average function from the previous example using the configuration file or system property, set a property as shown in the following example:

drools.accumulate.function.average = AverageAccumulateFunction.AverageData

Note that drools.accumulate.function is a required prefix, average is how the function is used in the DRL files, and AverageAccumulateFunction.AverageData is the fully qualified name of the class that implements the function behavior.

accumulate alternate syntax for a single function with return type

The accumulate syntax evolved over time with the goal of becoming more compact and expressive. Nevertheless, Drools still supports previous syntaxes for backward compatibility purposes.

In case the rule is using a single accumulate function on a given accumulate, the author may add a pattern for the result object and use the "from" keyword to link it to the accumulate result.

Example: a rule to apply a 10% discount on orders over $100 could be written in the following way:

rule "Apply 10% discount to orders over US$ 100,00"
when
    $order : Order()
    $total : Number( doubleValue > 100 )
             from accumulate( OrderItem( order == $order, $value : value ),
                              sum( $value ) )
then
    // apply discount to $order
end

In the previous example, the accumulate element is using only one function (sum), and so, the rules author opted to explicitly write a pattern for the result type of the accumulate function (Number) and write the constraints inside it. There are no problems in using this syntax over the compact syntax presented before, except that is is a bit more verbose. Also note that it is not allowed to use both the return type and the functions binding in the same accumulate statement.

Compile-time checks are performed in order to ensure the pattern used with the "from" keyword is assignable from the result of the accumulate function used.

With this syntax, the "from" binds to the single result returned by the accumulate function, and it does not iterate.

In the previous example, "$total" is bound to the result returned by the accumulate sum() function.

As another example however, if the result of the accumulate function is a collection, "from" still binds to the single result and it does not iterate:

rule "Person names"
when
  $x : Object() from accumulate(MyPerson( $val : name );
                                collectList( $val ) )
then
  // $x is a List
end

The bound "$x : Object()" is the List itself, returned by the collectList accumulate function used.

This is an important distinction to highlight, as the "from" keyword can also be used separately of accumulate, to iterate over the elements of a collection:

rule "Iterate the numbers"
when
    $xs : List()
    $x : Integer() from $xs
then
  // $x matches and binds to each Integer in the collection
end

While this syntax is still supported for backward compatibility purposes, for this and other reasons we encourage rule authors to make use instead of the preferred accumulate syntax (described previously), to avoid any potential pitfalls.

accumulate with inline custom code

Another possible syntax for the accumulate is to define inline custom code, instead of using accumulate functions.

The use of accumulate with inline custom code is not a good practice for several reasons, including difficulties on maintaining and testing rules that use them, as well as the inability of reusing that code. Implementing your own accumulate functions is very simple and straightforward, they are easy to unit test and to use. This form of accumulate is supported for backward compatibility only.

Only limited support for inline accumulate is provided while using the executable model. For example, you cannot use an external binding in the code while using the MVEL dialect:

rule R
dialect "mvel"
when
    String( $l : length )
    $sum : Integer() from accumulate (
                           Person( age > 18, $age : age ),
                           init( int sum = 0 * $l; ),
                           action( sum += $age; ),
                           reverse( sum -= $age; ),
                           result( sum )
                     )

The general syntax of the accumulate CE with inline custom code is:

<result pattern> from accumulate( <source pattern>,
                                  init( <init code> ),
                                  action( <action code> ),
                                  reverse( <reverse code> ),
                                  result( <result expression> ) )

The meaning of each of the elements is the following:

<source pattern>: the source pattern is a regular pattern that the Drools rule engine will try to match against each of the source objects.
<init code>: this is a semantic block of code in the selected dialect that will be executed once for each tuple, before iterating over the source objects.
<action code>: this is a semantic block of code in the selected dialect that will be executed for each of the source objects.
<reverse code>: this is an optional semantic block of code in the selected dialect that if present will be executed for each source object that no longer matches the source pattern. The objective of this code block is to undo any calculation done in the <action code> block, so that the Drools rule engine can do decremental calculation when a source object is modified or deleted, hugely improving performance of these operations.
<result expression>: this is a semantic expression in the selected dialect that is executed after all source objects are iterated.
<result pattern>: this is a regular pattern that the Drools rule engine tries to match against the object returned from the <result expression>. If it matches, the accumulate conditional element evaluates to true and the Drools rule engine proceeds with the evaluation of the next CE in the rule. If it does not matches, the accumulate CE evaluates to false and the Drools rule engine stops evaluating CEs for that rule.

It is easier to understand if we look at an example:

rule "Apply 10% discount to orders over US$ 100,00"
when
    $order : Order()
    $total : Number( doubleValue > 100 )
             from accumulate( OrderItem( order == $order, $value : value ),
                              init( double total = 0; ),
                              action( total += $value; ),
                              reverse( total -= $value; ),
                              result( total ) )
then
    // apply discount to $order
end

In the previous example, for each Order in the Working Memory, the Drools rule engine will execute the init code initializing the total variable to zero. Then it will iterate over all OrderItem objects for that order, executing the action for each one (in the example, it will sum the value of all items into the total variable). After iterating over all OrderItem objects, it will return the value corresponding to the result expression (in the previous example, the value of variable total). Finally, the Drools rule engine will try to match the result with the Number pattern, and if the double value is greater than 100, the rule will fire.

The example used Java as the semantic dialect, and as such, note that the usage of the semicolon as statement delimiter is mandatory in the init, action and reverse code blocks. The result is an expression and, as such, it does not admit ';'. If the user uses any other dialect, he must comply to that dialect’s specific syntax.

As mentioned before, the reverse code is optional, but it is strongly recommended that the user writes it in order to benefit from the improved performance on update and delete.

The accumulate CE can be used to execute any action on source objects. The following example instantiates and populates a custom object:

rule "Accumulate using custom objects"
when
    $person   : Person( $likes : likes )
    $cheesery : Cheesery( totalAmount > 100 )
                from accumulate( $cheese : Cheese( type == $likes ),
                                 init( Cheesery cheesery = new Cheesery(); ),
                                 action( cheesery.addCheese( $cheese ); ),
                                 reverse( cheesery.removeCheese( $cheese ); ),
                                 result( cheesery ) );
then
    // do something
end

eval

The conditional element eval is essentially a catch-all which allows any semantic code (that returns a primitive boolean) to be executed. This code can refer to variables that were bound in the conditions of the rule and functions in the rule package. Overuse of eval reduces the declarativeness of your rules and can result in a poorly performing Drools rule engine. While eval can be used anywhere in the patterns, it is typically added as the last conditional element in the conditions of a rule.

Figure 24. Eval

Instances of eval cannot be indexed and thus are not as efficient as Field Constraints. However this makes them ideal for being used when functions return values that change over time, which is not allowed within Field Constraints.

For those who are familiar with Drools 2.x lineage, the old Drools parameter and condition tags are equivalent to binding a variable to an appropriate type, and then using it in an eval node.

p1 : Parameter()
p2 : Parameter()
eval( p1.getList().containsKey( p2.getItem() ) )

p1 : Parameter()
p2 : Parameter()
// call function isValid in the LHS
eval( isValid( p1, p2 ) )

Rule actions in DRL (THEN)

The then part of the rule (also known as the Right Hand Side (RHS) of the rule) contains the actions to be performed when the conditional part of the rule has been met. Actions consist of one or more methods that execute consequences based on the rule conditions and on available data objects in the package. For example, if a bank requires loan applicants to be over 21 years of age (with a rule condition Applicant( age < 21 )) and a loan applicant is under 21 years old, the then action of an "Underage" rule would be setApproved( false ), declining the loan because the applicant is under age.

The main purpose of rule actions is to insert, delete, or modify data in the working memory of the Drools rule engine. Effective rule actions are small, declarative, and readable. If you need to use imperative or conditional code in rule actions, then divide the rule into multiple smaller and more declarative rules.

Example rule for loan application age limit

rule "Underage"
  when
    application : LoanApplication()
    Applicant( age < 21 )
  then
    application.setApproved( false );
    application.setExplanation( "Underage" );
end

Supported rule action methods in DRL

DRL supports the following rule action methods that you can use in DRL rule actions. You can use these methods to modify the working memory of the Drools rule engine without having to first reference a working memory instance. These methods act as shortcuts to the methods provided by the RuleContext class in your Drools distribution.

For all rule action methods, see the Drools RuleContext.java page in GitHub.

set

Use this to set the value of a field.

set<field> ( <value> )

Example rule action to set the values of a loan application approval

$application.setApproved ( false );
$application.setExplanation( "has been bankrupt" );

modify

Use this to specify fields to be modified for a fact and to notify the Drools rule engine of the change. This method provides a structured approach to fact updates. It combines the update operation with setter calls to change object fields.

modify ( <fact-expression> ) {
    <expression>,
    <expression>,
    ...
}

Example rule action to modify a loan application amount and approval

modify( LoanApplication ) {
        setAmount( 100 ),
        setApproved ( true )
}

update

Use this to specify fields and the entire related fact to be updated and to notify the Drools rule engine of the change. After a fact has changed, you must call update before changing another fact that might be affected by the updated values. To avoid this added step, use the modify method instead.

update ( <object, <handle> )  // Informs the Drools rule engine that an object has changed

update ( <object> )  // Causes `KieSession` to search for a fact handle of the object

Example rule action to update a loan application amount and approval

LoanApplication.setAmount( 100 );
update( LoanApplication );

If you provide property-change listeners, you do not need to call this method when an object changes. For more information about property-change listeners, see [property-change-listeners-con_decision-engine].

insert

Use this to insert a new fact into the working memory of the Drools rule engine and to define resulting fields and values as needed for the fact.

insert( new <object> );

Example rule action to insert a new loan applicant object

insert( new Applicant() );

insertLogical

Use this to insert a new fact logically into the Drools rule engine. The Drools rule engine is responsible for logical decisions on insertions and retractions of facts. After regular or stated insertions, facts must be retracted explicitly. After logical insertions, the facts that were inserted are automatically retracted when the conditions in the rules that inserted the facts are no longer true.

insertLogical( new <object> );

Example rule action to logically insert a new loan applicant object

insertLogical( new Applicant() );

delete

Use this to remove an object from the Drools rule engine. The keyword retract is also supported in DRL and executes the same action, but delete is typically preferred in DRL code for consistency with the keyword insert.

delete( <object> );

Example rule action to delete a loan applicant object

delete( Applicant );

Other rule action methods from `drools` variable

In addition to the standard rule action methods, the Drools rule engine supports methods in conjunction with the predefined drools variable that you can also use in rule actions.

You can use the drools variable to call methods from the org.kie.api.runtime.rule.RuleContext class in your Drools distribution, which is also the class that the standard rule action methods are based on. For all drools rule action options, see the Drools RuleContext.java page in GitHub.

The drools variable contains methods that provide information about the firing rule and the set of facts that activated the firing rule:

drools.getRule().getName(): Returns the name of the currently firing rule.
drools.getMatch(): Returns the Match that activated the currently firing rule. It contains information that is useful for logging and debugging purposes, for instance drools.getMatch().getObjects() returns the list of objects, enabling rule to fire in the proper tuple order.

From the drools variable, you can also obtain a reference to the KieRuntime providing useful methods to interact with the running session, for example:

drools.getKieRuntime().halt(): Terminates rule execution if a user or application previously called fireUntilHalt(). When a user or application calls fireUntilHalt() method, the Drools rule engine starts in active mode and evaluates rules until the user or application explicitly calls halt() method. Otherwise, by default, the Drools rule engine runs in passive mode and evaluates rules only when a user or an application explicitly calls fireAllRules() method.
drools.getKieRuntime().getAgenda(): Returns a reference to the KIE session Agenda, and in turn provides access to rule activation groups, rule agenda groups, and ruleflow groups.

Example call to access agenda group "CleanUp" and set the focus

drools.getKieRuntime().getAgenda().getAgendaGroup( "CleanUp" ).setFocus();

+ This example sets the focus to a specified agenda group to which the rule belongs.

drools.getKieRuntime().setGlobal(), ~.getGlobal(), ~.getGlobals(): Sets or retrieves global variables.
drools.getKieRuntime().getEnvironment(): Returns the runtime Environment, similar to your operating system environment.
drools.getKieRuntime().getQueryResults(<string> query): Runs a query and returns the results.

Advanced rule actions with conditional and named consequences

In general, effective rule actions are small, declarative, and readable. However, in some cases, the limitation of having a single consequence for each rule can be challenging and lead to verbose and repetitive rule syntax, as shown in the following example rules:

Example rules with verbose and repetitive syntax

rule "Give 10% discount to customers older than 60"
  when
    $customer : Customer( age > 60 )
  then
    modify($customer) { setDiscount( 0.1 ) };
end

rule "Give free parking to customers older than 60"
  when
    $customer : Customer( age > 60 )
    $car : Car( owner == $customer )
  then
    modify($car) { setFreeParking( true ) };
end

A partial solution to the repetition is to make the second rule extend the first rule, as shown in the following modified example:

Partially enhanced example rules with an extended condition

rule "Give 10% discount to customers older than 60"
  when
    $customer : Customer( age > 60 )
  then
    modify($customer) { setDiscount( 0.1 ) };
end

rule "Give free parking to customers older than 60"
    extends "Give 10% discount to customers older than 60"
  when
    $car : Car( owner == $customer )
  then
    modify($car) { setFreeParking( true ) };
end

As a more efficient alternative, you can consolidate the two rules into a single rule with modified conditions and labelled corresponding rule actions, as shown in the following consolidated example:

Consolidated example rule with conditional and named consequences

rule "Give 10% discount and free parking to customers older than 60"
  when
    $customer : Customer( age > 60 )
    do[giveDiscount]
    $car : Car( owner == $customer )
  then
    modify($car) { setFreeParking( true ) };
  then[giveDiscount]
    modify($customer) { setDiscount( 0.1 ) };
end

This example rule uses two actions: the usual default action and another action named giveDiscount. The giveDiscount action is activated in the condition with the keyword do when a customer older than 60 years old is found in the KIE base, regardless of whether or not the customer owns a car.

You can configure the activation of a named consequence with an additional condition, such as the if statement in the following example. The condition in the if statement is always evaluated on the pattern that immediately precedes it.

Consolidated example rule with an additional condition

rule "Give free parking to customers older than 60 and 10% discount to golden ones among them"
  when
    $customer : Customer( age > 60 )
    if ( type == "Golden" ) do[giveDiscount]
    $car : Car( owner == $customer )
  then
    modify($car) { setFreeParking( true ) };
  then[giveDiscount]
    modify($customer) { setDiscount( 0.1 ) };
end

You can also evaluate different rule conditions using a nested if and else if construct, as shown in the following more complex example:

Consolidated example rule with more complex conditions

rule "Give free parking and 10% discount to over 60 Golden customer and 5% to Silver ones"
  when
    $customer : Customer( age > 60 )
    if ( type == "Golden" ) do[giveDiscount10]
    else if ( type == "Silver" ) break[giveDiscount5]
    $car : Car( owner == $customer )
  then
    modify($car) { setFreeParking( true ) };
  then[giveDiscount10]
    modify($customer) { setDiscount( 0.1 ) };
  then[giveDiscount5]
    modify($customer) { setDiscount( 0.05 ) };
end

This example rule gives a 10% discount and free parking to Golden customers over 60, but only a 5% discount without free parking to Silver customers. The rule activates the consequence named giveDiscount5 with the keyword break instead of do. The keyword do schedules a consequence in the Drools rule engine agenda, enabling the remaining part of the rule conditions to continue being evaluated, while break blocks any further condition evaluation. If a named consequence does not correspond to any condition with do but is activated with break, the rule fails to compile because the conditional part of the rule is never reached.

Comments in DRL files

DRL supports single-line comments prefixed with a double forward slash // and multi-line comments enclosed with a forward slash and asterisk /* … */. You can use DRL comments to annotate rules or any related components in DRL files. DRL comments are ignored by the Drools rule engine when the DRL file is processed.

Example rule with comments

rule "Underage"
  // This is a single-line comment.
  when
    $application : LoanApplication()  // This is an in-line comment.
    Applicant( age < 21 )
  then
    /* This is a multi-line comment
    in the rule actions. */
    $application.setApproved( false );
    $application.setExplanation( "Underage" );
end

Figure 25. Multi-line comment

The hash symbol # is not supported for DRL comments.

Error messages for DRL troubleshooting

Drools provides standardized messages for DRL errors to help you troubleshoot and resolve problems in your DRL files. The error messages use the following format:

Figure 26. Error message format for DRL file problems

1st Block: Error code
2nd Block: Line and column in the DRL source where the error occurred
3rd Block: Description of the problem
4th Block: Component in the DRL source (rule, function, query) where the error occurred
5th Block: Pattern in the DRL source where the error occurred (if applicable)

Drools supports the following standardized error messages:

101: no viable alternative

Indicates that the parser reached a decision point but could not identify an alternative.

Example rule with incorrect spelling

1: rule "simple rule"
2:   when
3:     exists Person()
4:     exits Student()  // Must be `exists`
5:   then
6: end

Error message

[ERR 101] Line 4:4 no viable alternative at input 'exits' in rule "simple rule"

Example rule without a rule name

1: package org.drools.examples;
2: rule    // Must be `rule "rule name"` (or `rule rule_name` if no spacing)
3:   when
4:     Object()
5:   then
6:     System.out.println("A RHS");
7: end

Error message

[ERR 101] Line 3:2 no viable alternative at input 'when'

In this example, the parser encountered the keyword when but expected the rule name, so it flags when as the incorrect expected token.

Example rule with incorrect syntax

1: rule "simple rule"
2:   when
3:     Student( name == "Andy )  // Must be `"Andy"`
4:   then
5: end

Error message

[ERR 101] Line 0:-1 no viable alternative at input '<eof>' in rule "simple rule" in pattern Student

A line and column value of 0:-1 means the parser reached the end of the source file (<eof>) but encountered incomplete constructs, usually due to missing quotation marks "…", apostrophes '…', or parentheses (…).

102: mismatched input

Indicates that the parser expected a particular symbol that is missing at the current input position.

Example rule with an incomplete rule statement

1: rule simple_rule
2:   when
3:     $p : Person(
        // Must be a complete rule statement

Error message

[ERR 102] Line 0:-1 mismatched input '<eof>' expecting ')' in rule "simple rule" in pattern Person

Example rule with incorrect syntax

1: package org.drools.examples;
2:
3: rule "Wrong syntax"
4:   when
5:     not( Car( ( type == "tesla", price == 10000 ) || ( type == "kia", price == 1000 ) ) from $carList )
       // Must use `&&` operators instead of commas `,`
6:   then
7:     System.out.println("OK");
8: end

Error messages

[ERR 102] Line 5:36 mismatched input ',' expecting ')' in rule "Wrong syntax" in pattern Car
[ERR 101] Line 5:57 no viable alternative at input 'type' in rule "Wrong syntax"
[ERR 102] Line 5:106 mismatched input ')' expecting 'then' in rule "Wrong syntax"

In this example, the syntactic problem results in multiple error messages related to each other. The single solution of replacing the commas , with && operators resolves all errors. If you encounter multiple errors, resolve one at a time in case errors are consequences of previous errors.

103: failed predicate

Indicates that a validating semantic predicate evaluated to false. These semantic predicates are typically used to identify component keywords in DRL files, such as declare, rule, exists, not, and others.

Example rule with an invalid keyword

 1: package nesting;
 2:
 3: import org.drools.compiler.Person
 4: import org.drools.compiler.Address
 5:
 6: Some text  // Must be a valid DRL keyword
 7:
 8: rule "test something"
 9:   when
10:     $p: Person( name=="Michael" )
11:   then
12:     $p.name = "other";
13:     System.out.println(p.name);
14: end

Error message

[ERR 103] Line 6:0 rule 'rule_key' failed predicate: {(validateIdentifierKey(DroolsSoftKeywords.RULE))}? in rule

The Some text line is invalid because it does not begin with or is not a part of a DRL keyword construct, so the parser fails to validate the rest of the DRL file.

This error is similar to 102: mismatched input, but usually involves DRL keywords.

104: trailing semi-colon not allowed

Indicates that an eval() clause in a rule condition uses a semicolon ; but must not use one.

Example rule with eval() and trailing semicolon

1: rule "simple rule"
2:   when
3:     eval( abc(); )  // Must not use semicolon `;`
4:   then
5: end

Error message

[ERR 104] Line 3:4 trailing semi-colon not allowed in rule "simple rule"

105: did not match anything

Indicates that the parser reached a sub-rule in the grammar that must match an alternative at least once, but the sub-rule did not match anything. The parser has entered a branch with no way out.

Example rule with invalid text in an empty condition

1: rule "empty condition"
2:   when
3:     None  // Must remove `None` if condition is empty
4:   then
5:      insert( new Person() );
6: end

Error message

[ERR 105] Line 2:2 required (...)+ loop did not match anything at input 'WHEN' in rule "empty condition"

In this example, the condition is intended to be empty but the word None is used. This error is resolved by removing None, which is not a valid DRL keyword, data type, or pattern construct.

Domain Specific Languages

Domain Specific Languages (or DSLs) are a way of creating a rule language that is dedicated to your problem domain. A set of DSL definitions consists of transformations from DSL "sentences" to DRL constructs, which lets you use of all the underlying rule language and engine features. Given a DSL, you write rules in DSL rule (or DSLR) files, which will be translated into DRL files.

DSL and DSLR files are plain text files, and you can use any text editor to create and modify them. But there are also DSL and DSLR editors, both in the IDE as well as in the web based BRMS, and you can use those as well, although they may not provide you with the full DSL functionality.

When to Use a DSL

DSLs can serve as a layer of separation between rule authoring (and rule authors) and the technical intricacies resulting from the modelling of domain object and the Drools rule engine’s native language and methods. If your rules need to be read and validated by domain experts (such as business analysts, for instance) who are not programmers, you should consider using a DSL; it hides implementation details and focuses on the rule logic proper. DSL sentences can also act as "templates" for conditional elements and consequence actions that are used repeatedly in your rules, possibly with minor variations. You may define DSL sentences as being mapped to these repeated phrases, with parameters providing a means for accommodating those variations.

DSLs have no impact on the Drools rule engine at runtime, they are just a compile time feature, requiring a special parser and transformer.

DSL Basics

The Drools DSL mechanism allows you to customise conditional expressions and consequence actions. A global substitution mechanism ("keyword") is also available.

Example 1. Example DSL mapping

[when]Something is {colour}=Something(colour=="{colour}")

In the preceding example, [when] indicates the scope of the expression, i.e., whether it is valid for the LHS or the RHS of a rule. The part after the bracketed keyword is the expression that you use in the rule; typically a natural language expression, but it doesn’t have to be. The part to the right of the equal sign ("=") is the mapping of the expression into the rule language. The form of this string depends on its destination, RHS or LHS. If it is for the LHS, then it ought to be a term according to the regular LHS syntax; if it is for the RHS then it might be a Java statement.

Whenever the DSL parser matches a line from the rule file written in the DSL with an expression in the DSL definition, it performs three steps of string manipulation. First, it extracts the string values appearing where the expression contains variable names in braces (here: {colour}). Then, the values obtained from these captures are then interpolated wherever that name, again enclosed in braces, occurs on the right hand side of the mapping. Finally, the interpolated string replaces whatever was matched by the entire expression in the line of the DSL rule file.

Note that the expressions (i.e., the strings on the left hand side of the equal sign) are used as regular expressions in a pattern matching operation against a line of the DSL rule file, matching all or part of a line. This means you can use (for instance) a '?' to indicate that the preceding character is optional. One good reason to use this is to overcome variations in natural language phrases of your DSL. But, given that these expressions are regular expression patterns, this also means that all "magic" characters of Java’s pattern syntax have to be escaped with a preceding backslash ('\').

It is important to note that the compiler transforms DSL rule files line by line. In the previous example, all the text after "Something is " to the end of the line is captured as the replacement value for "{colour}", and this is used for interpolating the target string. This may not be exactly what you want. For instance, when you intend to merge different DSL expressions to generate a composite DRL pattern, you need to transform a DSLR line in several independent operations. The best way to achieve this is to ensure that the captures are surrounded by characteristic text - words or even single characters. As a result, the matching operation done by the parser plucks out a substring from somewhere within the line. In the example below, quotes are used as distinctive characters. Note that the characters that surround the capture are not included during interpolation, just the contents between them.

As a rule of thumb, use quotes for textual data that a rule editor may want to enter. You can also enclose the capture with words to ensure that the text is correctly matched. Both is illustrated by the following example. Note that a single line such as Something is "green" and another solid thing is now correctly expanded.

Example 2. Example with quotes

[when]something is "{colour}"=Something(colour=="{colour}")
[when]another {state} thing=OtherThing(state=="{state})"

It is a good idea to avoid punctuation (other than quotes or apostrophes) in your DSL expressions as much as possible. The main reason is that punctuation is easy to forget for rule authors using your DSL. Another reason is that parentheses, the period and the question mark are magic characters, requiring escaping in the DSL definition.

In a DSL mapping, the braces "{" and "}" should only be used to enclose a variable definition or reference, resulting in a capture. If they should occur literally, either in the expression or within the replacement text on the right hand side, they must be escaped with a preceding backslash ("\"):

[then]do something= if (foo) \{ doSomething(); \}

If braces "{" and "}" should appear in the replacement string of a DSL definition, escape them with a backslash ('\').

Example 3. Examples of DSL mapping entries

# This is a comment to be ignored.
[when]There is a person with name of "{name}"=Person(name=="{name}")
[when]Person is at least {age} years old and lives in "{location}"=
      Person(age >= {age}, location=="{location}")
[then]Log "{message}"=System.out.println("{message}");
[when]And = and

Given the above DSL examples, the following examples show the expansion of various DSLR snippets:

Example 4. Examples of DSL expansions

There is a person with name of "Kitty"
   ==> Person(name="Kitty")
Person is at least 42 years old and lives in "Atlanta"
   ==> Person(age >= 42, location="Atlanta")
Log "boo"
   ==> System.out.println("boo");
There is a person with name of "Bob" And Person is at least 30 years old and lives in "Utah"
   ==> Person(name="Bob") and Person(age >= 30, location="Utah")

Don’t forget that if you are capturing plain text from a DSL rule line and want to use it as a string literal in the expansion, you must provide the quotes on the right hand side of the mapping.

You can chain DSL expressions together on one line, as long as it is clear to the parser where one ends and the next one begins and where the text representing a parameter ends. (Otherwise you risk getting all the text until the end of the line as a parameter value.) The DSL expressions are tried, one after the other, according to their order in the DSL definition file. After any match, all remaining DSL expressions are investigated, too.

The resulting DRL text may consist of more than one line. Line ends are in the replacement text are written as \n.

Adding Constraints to Facts

A common requirement when writing rule conditions is to be able to add an arbitrary combination of constraints to a pattern. Given that a fact type may have many fields, having to provide an individual DSL statement for each combination would be plain folly.

The DSL facility allows you to add constraints to a pattern by a simple convention: if your DSL expression starts with a hyphen (minus character, "-") it is assumed to be a field constraint and, consequently, is is added to the last pattern line preceding it.

For an example, lets take look at class Cheese, with the following fields: type, price, age and country. We can express some LHS condition in normal DRL like the following

Cheese(age < 5, price == 20, type=="stilton", country=="ch")

The DSL definitions given below result in three DSL phrases which may be used to create any combination of constraint involving these fields.

[when]There is a Cheese with=Cheese()
[when]- age is less than {age}=age<{age}
[when]- type is '{type}'=type=='{type}'
[when]- country equal to '{country}'=country=='{country}'

You can then write rules with conditions like the following:

There is a Cheese with
        - age is less than 42
        - type is 'stilton'

 The parser will pick up a line beginning with "-" and add it as a constraint to  the preceding pattern, inserting a comma when it is required.
For the preceding example, the resulting DRL is:

Cheese(age<42, type=='stilton')

Combining all numeric fields with all relational operators (according to the DSL expression "age is less than…" in the preceding example) produces an unwieldy amount of DSL entries. But you can define DSL phrases for the various operators and even a generic expression that handles any field constraint, as shown below. (Notice that the expression definition contains a regular expression in addition to the variable name.)

[when][]is less than or equal to=<=
[when][]is less than=<
[when][]is greater than or equal to=>=
[when][]is greater than=>
[when][]is equal to===
[when][]equals===
[when][]There is a Cheese with=Cheese()
[when][]- {field:\w*} {operator} {value:\d*}={field} {operator} {value}

Given these DSL definitions, you can write rules with conditions such as:

There is a Cheese with
   - age is less than 42
   - rating is greater than 50
   - type equals 'stilton'

In this specific case, a phrase such as "is less than" is replaced by <, and then the line matches the last DSL entry. This removes the hyphen, but the final result is still added as a constraint to the preceding pattern. After processing all of the lines, the resulting DRL text is:

Cheese(age<42, rating > 50, type=='stilton')

The order of the entries in the DSL is important if separate DSL expressions are intended to match the same line, one after the other.

Developing a DSL

A good way to get started is to write representative samples of the rules your application requires, and to test them as you develop. This will provide you with a stable framework of conditional elements and their constraints. Rules, both in DRL and in DSLR, refer to entities according to the data model representing the application data that should be subject to the reasoning process defined in rules. Notice that writing rules is generally easier if most of the data model’s types are facts.

Given an initial set of rules, it should be possible to identify recurring or similar code snippets and to mark variable parts as parameters. This provides reliable leads as to what might be a handy DSL entry. Also, make sure you have a full grasp of the jargon the domain experts are using, and base your DSL phrases on this vocabulary.

You may postpone implementation decisions concerning conditions and actions during this first design phase by leaving certain conditional elements and actions in their DRL form by prefixing a line with a greater sign (">"). (This is also handy for inserting debugging statements.)

During the next development phase, you should find that the DSL configuration stabilizes pretty quickly. New rules can be written by reusing the existing DSL definitions, or by adding a parameter to an existing condition or consequence entry.

Try to keep the number of DSL entries small. Using parameters lets you apply the same DSL sentence for similar rule patterns or constraints. But do not exaggerate: authors using the DSL should still be able to identify DSL phrases by some fixed text.

DSL and DSLR Reference

A DSL file is a text file in a line-oriented format. Its entries are used for transforming a DSLR file into a file according to DRL syntax.

A line starting with "" or "//" (with or without preceding white space) is treated as a comment. A comment line starting with "/" is scanned for words requesting a debug option, see below.
Any line starting with an opening bracket ("[") is assumed to be the first line of a DSL entry definition.
Any other line is appended to the preceding DSL entry definition, with the line end replaced by a space.

A DSL entry consists of the following four parts:

A scope definition, written as one of the keywords "when" or "condition", "then" or "consequence", "*" and "keyword", enclosed in brackets ("[" and "]"). This indicates whether the DSL entry is valid for the condition or the consequence of a rule, or both. A scope indication of "keyword" means that the entry has global significance, i.e., it is recognized anywhere in a DSLR file.
A type definition, written as a Java class name, enclosed in brackets. This part is optional unless the next part begins with an opening bracket. An empty pair of brackets is valid, too.
A DSL expression consists of a (Java) regular expression, with any number of embedded variable definitions, terminated by an equal sign ("="). A variable definition is enclosed in braces ("{" and "}"). It consists of a variable name and two optional attachments, separated by colons (":"). If there is one attachment, it is a regular expression for matching text that is to be assigned to the variable; if there are two attachments, the first one is a hint for the GUI editor and the second one the regular expression.

Note that all characters that are "magic" in regular expressions must be escaped with a preceding backslash ("\") if they should occur literally within the expression.
The remaining part of the line after the delimiting equal sign is the replacement text for any DSLR text matching the regular expression. It may contain variable references, i.e., a variable name enclosed in braces. Optionally, the variable name may be followed by an exclamation mark ("!") and a transformation function, see below.

Note that braces ("{" and "}") must be escaped with a preceding backslash ("\") if they should occur literally within the replacement string.

Debugging of DSL expansion can be turned on, selectively, by using a comment line starting with "#/" which may contain one or more words from the table presented below. The resulting output is written to standard output.

Table 2. Debug options for DSL expansion
Word	Description
result	Prints the resulting DRL text, with line numbers.
steps	Prints each expansion step of condition and consequence lines.
keyword	Dumps the internal representation of all DSL entries with scope "keyword".
when	Dumps the internal representation of all DSL entries with scope "when" or "*".
then	Dumps the internal representation of all DSL entries with scope "then" or "*".
usage	Displays a usage statistic of all DSL entries.

Below are some sample DSL definitions, with comments describing the language features they illustrate.

# Comment: DSL examples

#/ debug: display result and usage

# keyword definition: replaces "regula" by "rule"
[keyword][]regula=rule

# conditional element: "T" or "t", "a" or "an", convert matched word
[when][][Tt]here is an? {entity:\w+}=
        ${entity!lc}: {entity!ucfirst} ()

# consequence statement: convert matched word, literal braces
[then][]update {entity:\w+}=modify( ${entity!lc} )\{ \}

The transformation of a DSLR file proceeds as follows:

The text is read into memory.
Each of the "keyword" entries is applied to the entire text. First, the regular expression from the keyword definition is modified by replacing white space sequences with a pattern matching any number of white space characters, and by replacing variable definitions with a capture made from the regular expression provided with the definition, or with the default (".*?"). Then, the DSLR text is searched exhaustively for occurrences of strings matching the modified regular expression. Substrings of a matching string corresponding to variable captures are extracted and replace variable references in the corresponding replacement text, and this text replaces the matching string in the DSLR text.
Sections of the DSLR text between "when" and "then", and "then" and "end", respectively, are located and processed in a uniform manner, line by line, as described below.

For a line, each DSL entry pertaining to the line’s section is taken in turn, in the order it appears in the DSL file. Its regular expression part is modified: white space is replaced by a pattern matching any number of white space characters; variable definitions with a regular expression are replaced by a capture with this regular expression, its default being ".*?". If the resulting regular expression matches all or part of the line, the matched part is replaced by the suitably modified replacement text.

Modification of the replacement text is done by replacing variable references with the text corresponding to the regular expression capture. This text may be modified according to the string transformation function given in the variable reference; see below for details.

If there is a variable reference naming a variable that is not defined in the same entry, the expander substitutes a value bound to a variable of that name, provided it was defined in one of the preceding lines of the current rule.
If a DSLR line in a condition is written with a leading hyphen, the expanded result is inserted into the last line, which should contain a pattern CE, i.e., a type name followed by a pair of parentheses. if this pair is empty, the expanded line (which should contain a valid constraint) is simply inserted, otherwise a comma (",") is inserted beforehand.

If a DSLR line in a consequence is written with a leading hyphen, the expanded result is inserted into the last line, which should contain a "modify" statement, ending in a pair of braces ("{" and "}"). If this pair is empty, the expanded line (which should contain a valid method call) is simply inserted, otherwise a comma (",") is inserted beforehand.

It is currently not possible to use a line with a leading hyphen to insert text into other conditional element forms (e.g., "accumulate") or it may only work for the first insertion (e.g., "eval").

All string transformation functions are described in the following table.

Table 3. String transformation functions
Name	Description
uc	Converts all letters to upper case.
lc	Converts all letters to lower case.
ucfirst	Converts the first letter to upper case, and all other letters to lower case.
num	Extracts all digits and "-" from the string. If the last two digits in the original string are preceded by "." or ",", a decimal period is inserted in the corresponding position.
a?b/c	Compares the string with string a, and if they are equal, replaces it with b, otherwise with c. But c can be another triplet a, b, c, so that the entire structure is, in fact, a translation table.

The following DSL examples show how to use string transformation functions.

# definitions for conditions
[when][]There is an? {entity}=${entity!lc}: {entity!ucfirst}()
[when][]- with an? {attr} greater than {amount}={attr} <= {amount!num}
[when][]- with a {what} {attr}={attr} {what!positive?>0/negative?%lt;0/zero?==0/ERROR}

A file containing a DSL definition has to be put under the resources folder or any of its subfolders like any other drools artifact. It must have the extension .dsl, or alternatively be marked with type ResourceType.DSL. when programmatically added to a KieFileSystem. For a file using DSL definition, the extension .dslr should be used, while it can be added to a KieFileSystem with type ResourceType.DSLR.

For parsing and expanding a DSLR file the DSL configuration is read and supplied to the parser. Thus, the parser can "recognize" the DSL expressions and transform them into native rule language expressions.

Rule Language Reference (Traditional)

Traditional DRL Syntax

Packages in DRL

Import statements in DRL

Functions in DRL

Queries in DRL

Type declarations and metadata in DRL

Type declarations without metadata in DRL

Enumerative type declarations in DRL

Extended type declarations in DRL

Type declarations with metadata in DRL

Access to DRL declared types in application code

Global variables in DRL

Timer and calendar rule attributes in DRL

Rule conditions in DRL (WHEN)

Patterns and constraints

Bound variables in patterns and constraints

Nested constraints and inline casts

Date literal in constraints

Auto-boxing and primitive types

Supported operators in DRL pattern constraints

Operator precedence in DRL pattern constraints

Supported rule condition elements in DRL (keywords)

Rule actions in DRL (THEN)

Supported rule action methods in DRL

Other rule action methods from drools variable

Advanced rule actions with conditional and named consequences

Comments in DRL files

Error messages for DRL troubleshooting

Domain Specific Languages

When to Use a DSL

DSL Basics

Adding Constraints to Facts

Developing a DSL

DSL and DSLR Reference

Other rule action methods from `drools` variable
